Accessory housings for RACO actuators

The sensor technology is protected in the additional device housings. This can be the EPS position sensor, mechanical limit switch systems or even a multiturn encoder according to customer requirements.

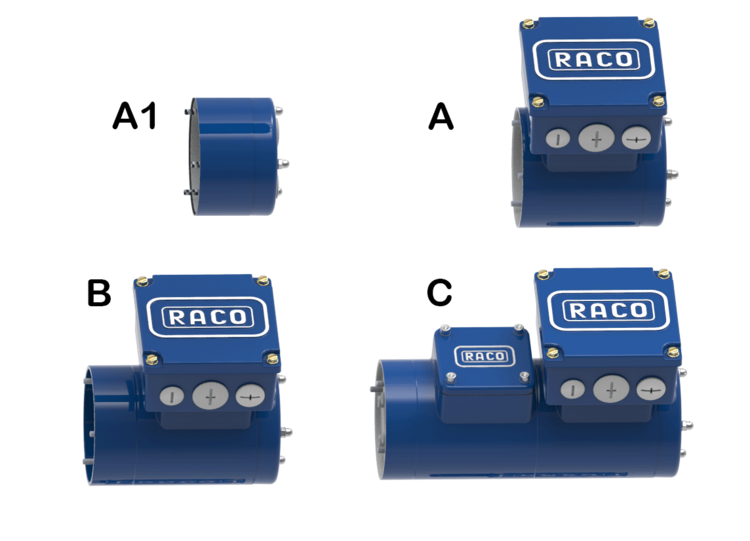

Housings A1, A, B und C

These additional accessory housings are fitted to the second shaft end of the motor if there is no handwheel or to the belt drive housing or as an extension to the spindle shaft for angular gearboxes.

These housings are also optionally available as steel housings.

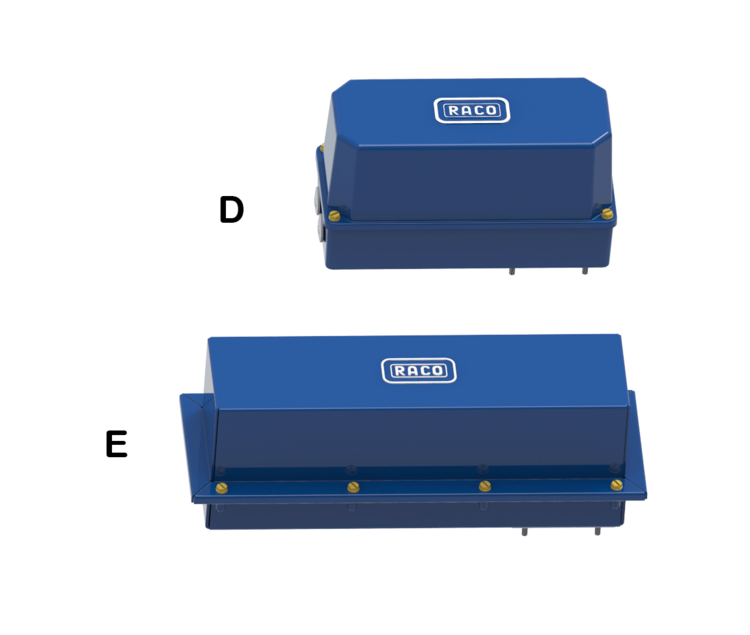

Housings D und E

These additional lateral device housings are attached to the clutch housing. They are coupled to the spindle shaft via a toothed belt.

Box D is made of aluminum up to protection class IP54. The larger box E is generally available in steel up to IP65.
