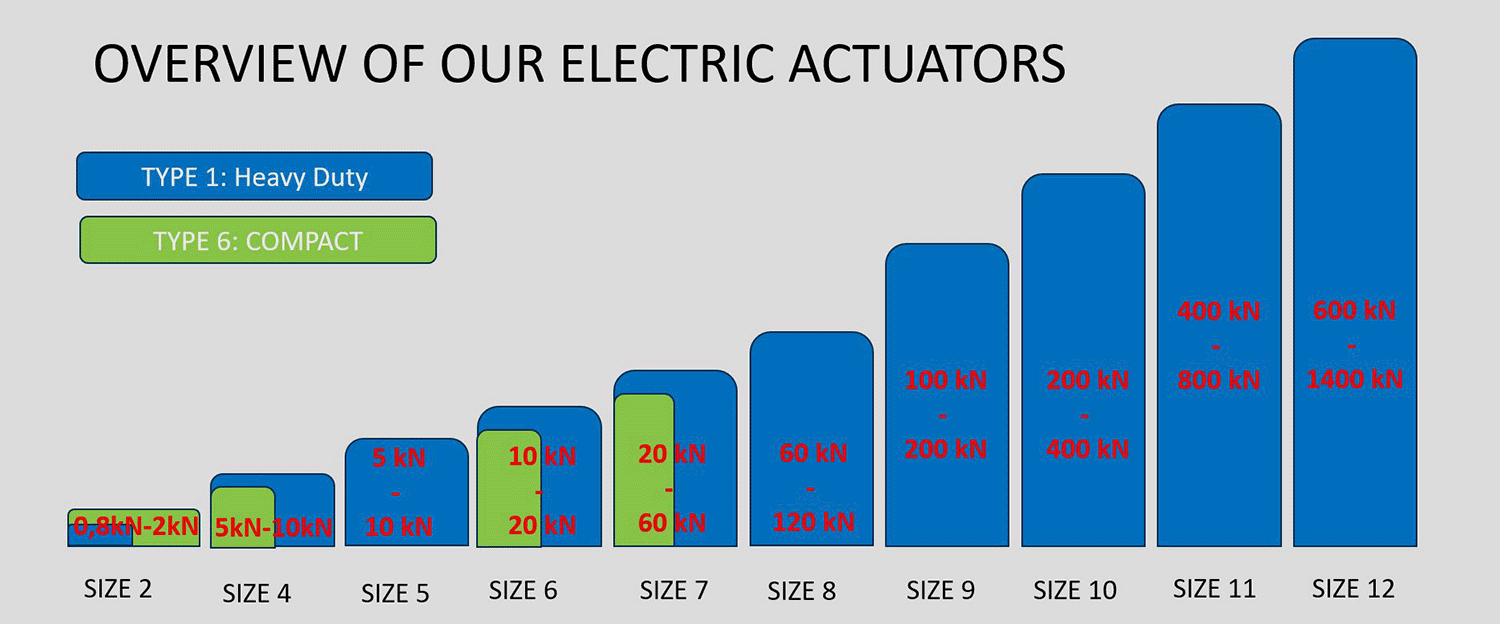

Features of the series:
All our electric actuators are industrial versions for the highest demands.
- Type 1:
The high-performance series of RACO electric actuators can be used in all branches of industry, including heavy industry and under adverse environmental conditions. Special corrosion protection packages cover a wide range of applications.
Sizes 4 to 8 are also available with ATEX certification. - Type 6:
The COMPACT electric actuators have been specially developed for indoor applications in industry, with the smallest possible dimensions. The features are limited in terms of environmental conditions. Medium dust and moisture loads are typical.
CONSTRUCTION Designs of RACO actuactors
Different designs can be selected depending on the space available in the customer's design:
- Design A: straight design without gearbox
- Design M: straight design with spur or planetary gearbox
- Design T, R: angular gearbox design (worm or bevel gearbox)
- Design C: Parallel design with deflection housing and HDT toothed belt
- Design P: Parallel design with flat gearbox
- Design N: Parallel design with deflection housing and HDT toothed belt and spur gearbox
